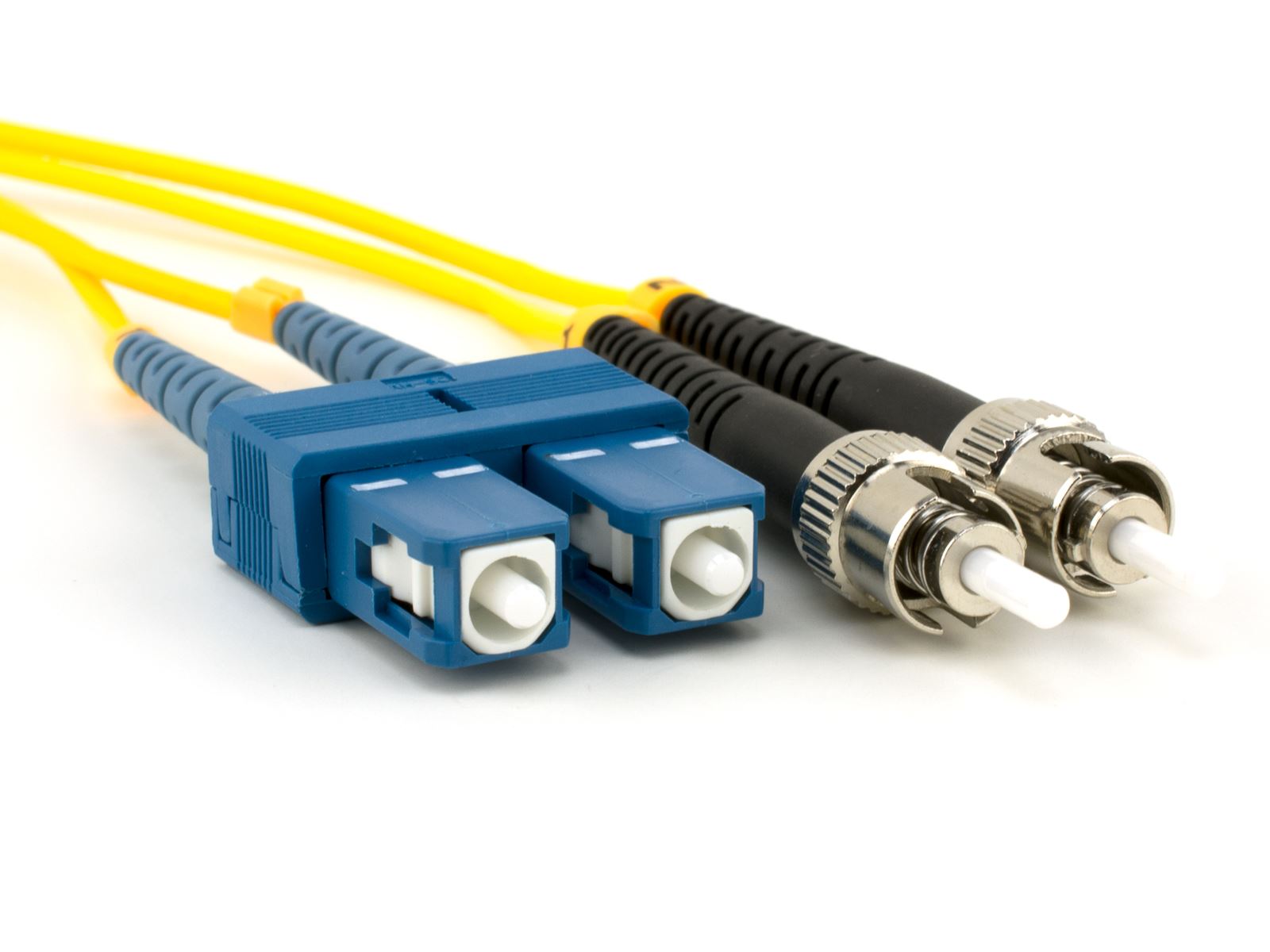

1m Singlemode Duplex Fiber Optic Patch Cable (9/125) - SC to ST

This 1m Singlemode Duplex Fiber Optic Patch Cable (9/125) - SC to ST is built with genuine Corning Glass, has ceramic ferrules and a 9/125 micron core, this cable is suitable for high speed data transmissions such that you would find in Ethernet (10 Mb/s) to Gigabit Ethernet (1 Gb/s) networks.
Brand: Networx
P/N: FP-SCST1SD9-001
GTIN: 00845425007889
Networx® top quality, high-speed 1m Singlemode Duplex Fiber Optic Patch Cable (9/125) - SC to ST cables will unleash the power of your telecommunications system. With ceramic ferrules and a 9/125 micron core, this cable is suitable for high speed, high bandwidth, far-reaching telecommunications such that you would find in long-distance telephony and cable television applications.  These fibers operate at the 1310 nm or 1550 nm transmission windows. Each jumper cable is constructed using Genuine Corning Glass and shipped in individually sealed bags to ensure they arrive in perfect condition. Test results for the individual patch cable will be included in each bag. Color coded connectors assist with identification during the installation process to make installation easy for anyone.

  • Core Diameter: 9/125 micron
  • Insertion loss: typically 0.30 dB
  • Return loss: ≥50 dB
  • Ceramic Ferrules for increased durability
  • FOCIS-3 TIA/EIA-568-B.3 Compliant

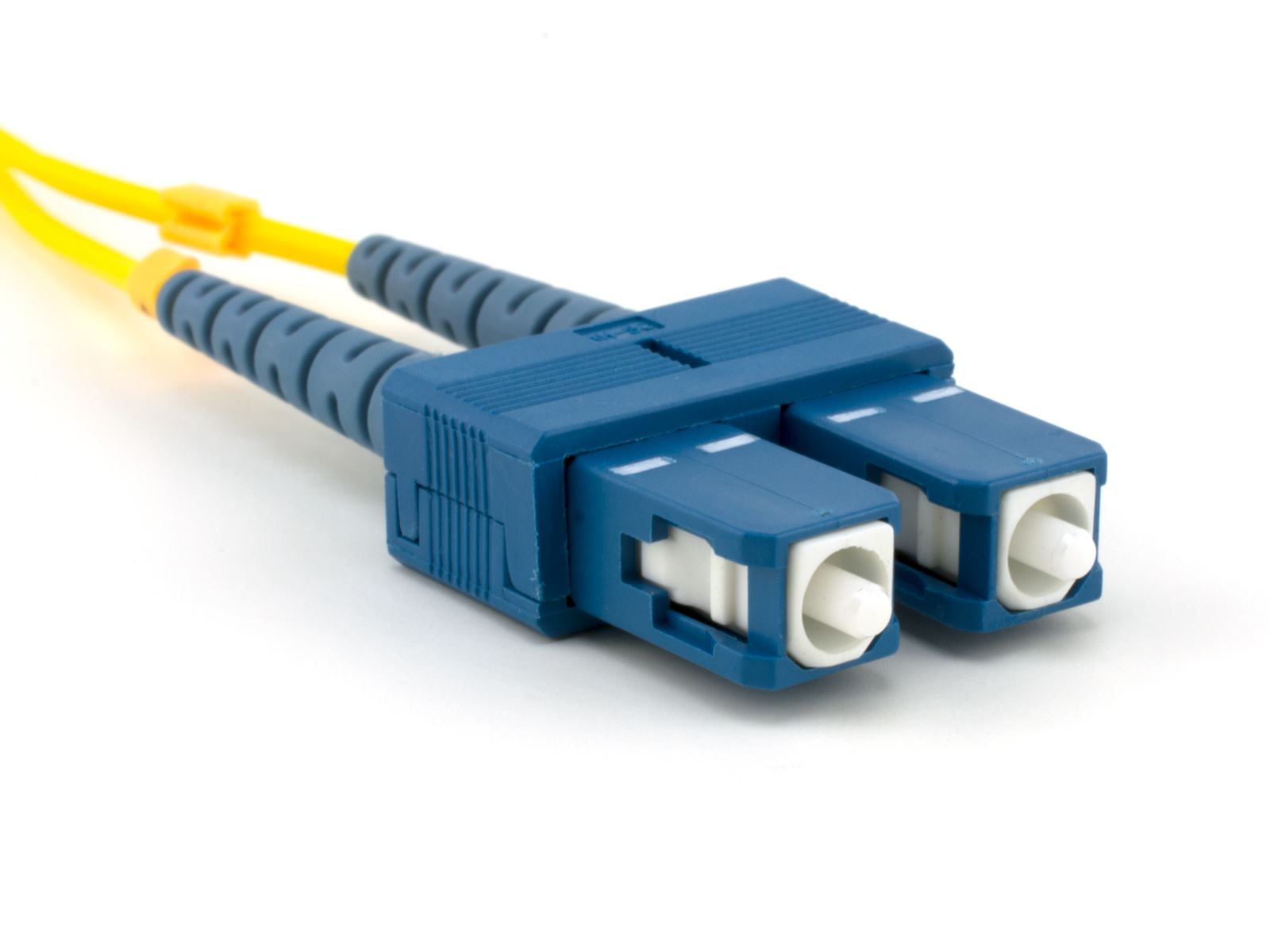

  • Connectors: (SC/UPC) Molded body with push-pull locking (snap-in); (ST/UPC) Bayonet twist-locking system
  • Used primarily for high speed data communications such as Ethernet or Gigabit Ethernet
  • Ultra Physical Contact (UPC) Polished Fiber
  • Built with Corning Glass
Products specifications
Attribute nameAttribute value
Connector ASC Male
Connector BST Male
ColorYellow
Fiber TypeSinglemode
Core Size9/125
ManufacturerNetworx®
Fiber ClassificationOS1
WarrantyLifetime Warranty
UL ListedYes
RoHs CompliantYes
Length1 Meter
