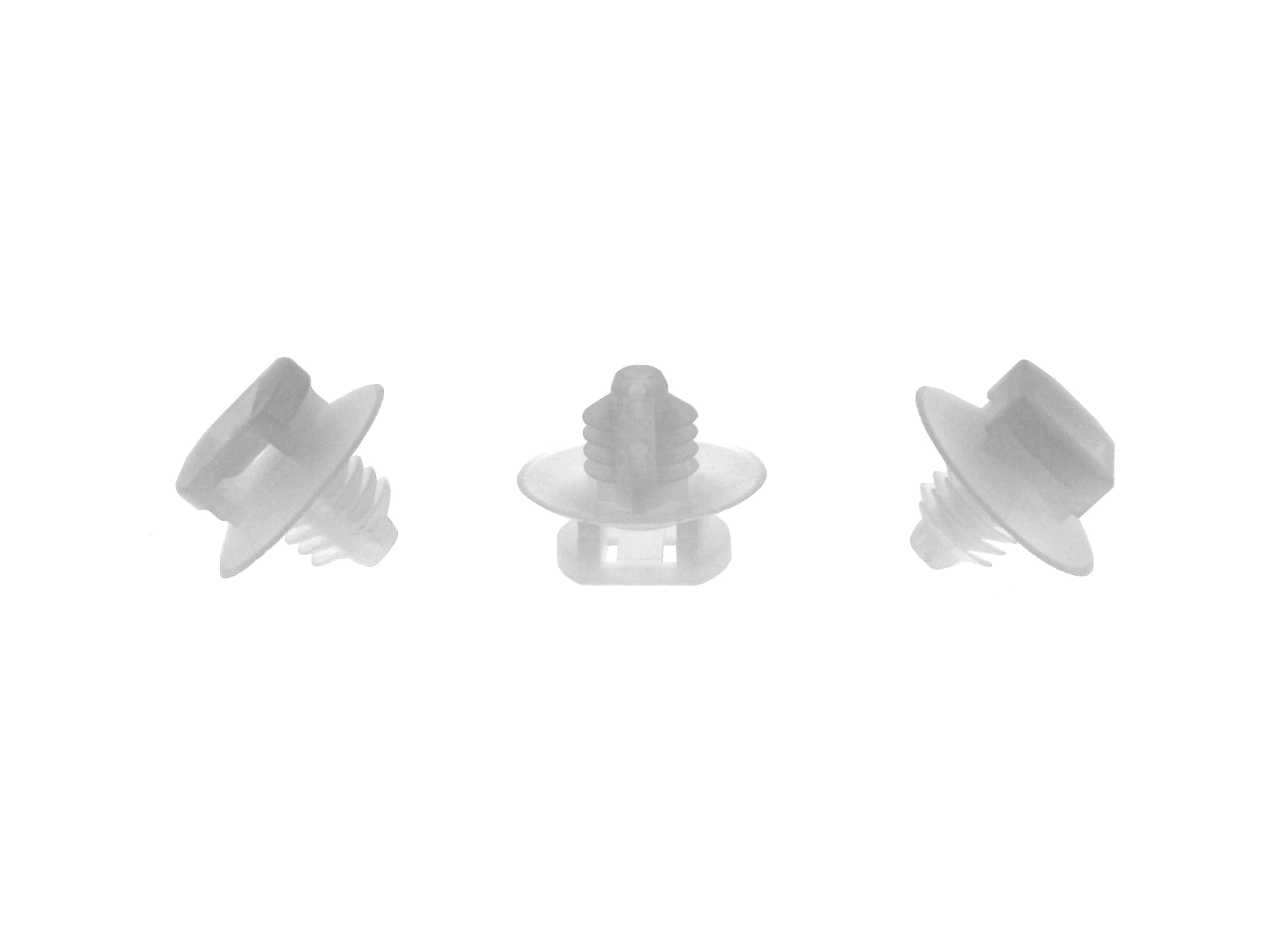

5 mm Push Tie Mount - 100 Pack

Push Tie Mounts from SCT are designed for maximum stability when securing cable bundles.
Brand: SCT Cable Ties
P/N: PMC-50-NL
GTIN: 00846949012151

Push Tie Mounts from SCT are designed for maximum stability when securing cable bundles. Simply fix the Push mount in a quickly drilled hole and secure your cable bundle with a SCT Nylon Cable Tie. All SCT Push Tie mounts have a UL 94V-2 Flame rating while coming in a standard natural color.

Products specifications
Attribute nameAttribute value
ColorNatural
MaterialNylon 6/6 - General Purpose
UV ProtectionNo
ManufacturerSCT Cable Ties
RoHs CompliantYes
UL CompliantYes
Slot Opening Height2.1 mm (0.08 Inch)
Slot Opening Length5.2 mm (0.2 Inch)
Plug Width7.5 mm (0.29 Inch)
Plug Thickness8.7 mm (0.34 Inch)
Plug Height5.2 mm (0.2 Inch)
Length16.3 mm (0.64 Inch)
Width16.3 mm (0.64 Inch)
Height13.8 mm (0.54 Inch)
