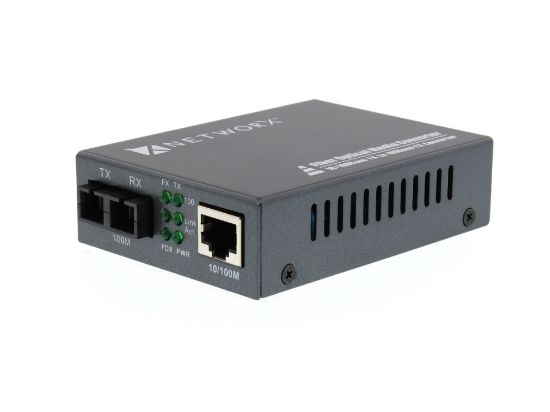

Fiber Media Converter - 100Base-SX, SC Multimode, 550m, 850nm

This Fiber Transceiver / Media Converter converts data signal between 10/100Base-T/TX and 100Base-SX/FL Fast Ethernet. Supports 50/125, 62.5/125, or 100/140 micron multimode Duplex SC fiber. Optical wavelength 850nm, Maximum distance up to 550m.
Brand: Networx
P/N: FT-100MM-SC850
GTIN: 00845425008251
This product supports IEEE802.3UI 100Base-Tx/Sx protocol, as well as full duplex and half duplex mode. The transmission media adopts Cat5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire (10/100M).

In conformity to IEEE 802.3 10Base-T standard and IEEE 802.3u 100Base-Tx/Sx. Max. 2M buffer memory built in chip. Back pressure flow control for full duplex IEEE802.3 X and half duplex. Automatic identification of MDI/MDI-X cross line. High performance 1.4Gpbs memory bandwidth. In conformity to safety code of FCC and 15 CLASS A and CE MARK.
  • Standard Protocol - IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX/FX
  • Connectors - One UTP RJ45, Two SC Fiber
  • Operation mode - Full Duplex or Half Duplex
  • Power Supply - External AC-DC Power Adapter, US Standard
  • Fiber (micron) - 50/125, 62.5/125
  • Optical wavelength - 850 nm
  • Transmission Distance - 550m
  • Optical Output Power - > -18 dBm
  • Receiving Sensitivity - < -31 dBm
Products specifications
Attribute nameAttribute value
ColorGray
ConnectorSC, RJ45
Connector ASC Female
Connector BRJ45 Female
Fiber TypeMultimode
Maximum Data Transfer Rate10/100 Mbps
Wavelength850nm
ManufacturerNetworx®
Input Voltage85 - 240V AC
Input Current0.28 A
Output Voltage5V DC
Output Current1 A
Auto MDI/MDIXYes
Warranty3 Year Warranty
RoHs CompliantYes
Maximum Transfer Distance550m
